ARDUINO RADAR

---

Project Description:

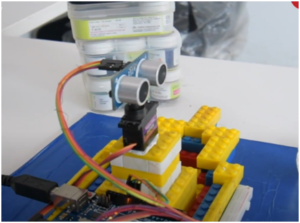

The basic objective of our project is to determine the distance position and angle of the obstacle set at some distance from the sensor. Ultrasonic sensor sends the ultrasonic wave in various directions by rotating with help of servo motors. This wave goes in air and gets reflected back after striking some object. This wave is again detected by the sensor and is analyzed and output is shown in screen. Ultrasonic sensor is attached on top of the servo motor because it has to detect the object and its distance with its angle. Arduino will control the ultra-sonic sensor and servo motor.

As the ultrasonic sensor does not detects any object the servo keeps constantly rotating, as you can see the graph shows a green arc. As soon as any obstacle/object is detected by the ultrasonic sensor the data is immediately processed by the controller and a red arc shown on the display screen.

Project Utility:

We can easily find the estimated distance of the object from the system with the angle at which it is placed. It can also be used at night.It has high frequency, high sensitivity, therefore, it can easily detect the external or deep objects. This radar sensor is not affected by dust, rain, snow, and many more.

Video link:

https://drive.google.com/file/d/1YfVxFDISwmQ8lUhdr31JZz-fajqUV8mj/view?usp=sharing

---

---

---

---

---

---

---

---
